Azure Active Directory – Assigning Groups to Applications in PowerShell

Azure Active Directory Applications have been around for a while, but it’s I’ve found it hard to find good information on them beyond the biggest benefit of Marketplace Apps.

Along with my Azure AD B2B journey (still in preview at time of writing), the option of pushing out something like a SharePoint Online site as an app is one of the jigsaw pieces required to make the whole B2B process work – as a version of the apps page is displayed as the default link to anyone who accepts an Azure AD B2B invite and logs in for the first time.

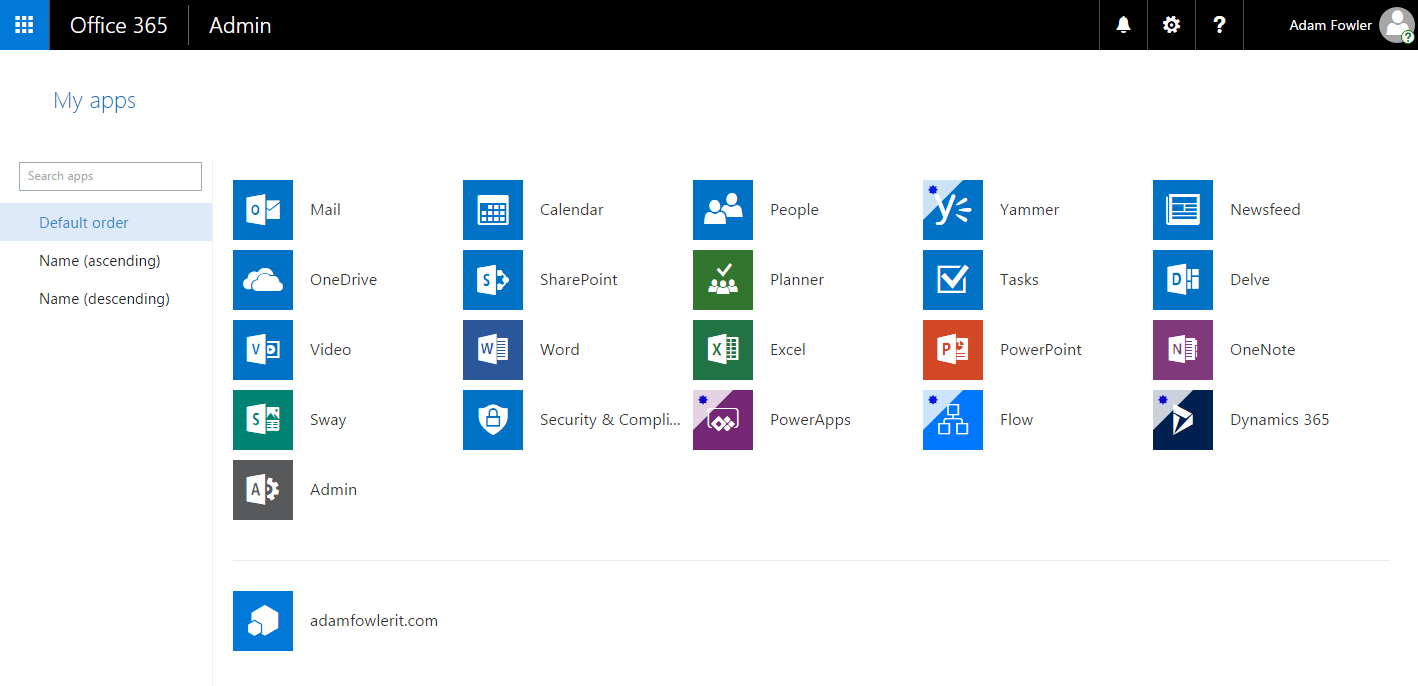

MyApps – an externally invited user will only see the apps they have access to (by default, none)

I’m trying to gloss over details here, as there’s a lot of steps with different parts of the Microsoft world to get a process automated end to end for inviting external users to a SharePoint Online site – but the last step of assigning a user or group to an application has no documentation I could find, that showed how to achieve this via PowerShell.

All I want to do here, is create an Application in Azure AD, then assign a group to it. Members of the group will then see the application on MyApps.

Two different modules are required – Azure Active Directory V2 PowerShell module and Azure Resource Manager.

What we can do with these two modules is first create the application with the New-AzureRMADApplication command:

New-AzureRmADApplication -DisplayName "SharePoint Online Site A" -HomePage "https://contoso.sharepointonline.com/sitea" -IdentifierUris "https://contoso.sharepointonline.com/sitea"

Easy, now you have an application that will point to the URL entered in Azure Active Directory. Assigning a group to it is a bit trickier…

First, a few values need to be obtained:

$app = Get-AzureRmADApplication | where displayname -eq "SharePoint Online Site A"
$appid = $app.ApplicationId
$fullgroup = get-msolgroup -all | where displayname -eq "SharePoint Online Site A"

This is getting the two objects as variables – the Application itself, and the group that you want to add onto it.

Then a new Service Principal needs to be created based on the Application, as this is required when adding the group onto the application:

New-AzureADServicePrincipal -AppId $appid

Another variable is needed, which is the new Service Principal we just created:

$servicePrincipal = Get-AzureADServicePrincipal -Filter "appId eq '$appId'"

Finally, we can assign the group to the application:

New-AzureADGroupAppRoleAssignment -objectid $fullgroup.objectid -principalid $fullgroup.objectid -resourceid $serviceprincipal.objectid -id ([Guid]::Empty)

You can check that this has applied by the Azure Active Directory portal too, by going to your Active Directory section, choosing ‘Applications’ and finding your app, then go into ‘users and groups’ and find the group. You should see a ‘yes’ in the assigned field.

If there’s any interest in documenting the entire SharePoint Online and Azure AD B2B invite process and script, let me know. It’s a great way of sharing data with clients via a portal.

Update 15th June 2017

Microsoft made a change with the IdentifierURI field, which is also called AppID if you view it in the Azure portal. Previously, it could be any unique URL, it just has to be unique amongst your apps (as to why it has to be a URL at all, I couldn’t get an answer on). Now, it can be anything as long as it’s not sharepoint.com or dynamics.com as they’ve reserved those for other reasons. My example above, and what I’d been using in production was variants of sharepoint.com – as the unique URI might as well be the actual URL of the site. If you use a URL that’s not allowed anymore, you’ll get the error:

New-AzureRMADApplication : Operation returned an invalid status code ‘BadRequest’



One thought on “Azure Active Directory – Assigning Groups to Applications in PowerShell

  1. Running into kind of the same issues you noticed here. For what I see the fact that you need to create an App with a unique URL in order to get the AppId is kind of inconvenient, because if you have several Site Collections on your SharePoint.com tenant; it’ll force the registration of as many apps as Site Collections you have.. Am I missing something?, or is that your experience as well?

    Good write up though.

    Thanks
