Four Generations of the Lenovo ThinkPad X1 Yoga

Lenovo’s X1 Yoga is my favorite business laptop. Ever since the X1 Yoga Gen 1 came out, I liked it over the other X1 options as it was an all-rounder, while doing everything really well.

That first generation came out in 2016, and each year there’s been a new one, the 2nd Gen, 3rd Gen and now in 2019, we’re at the 4th Gen.

It’s about time I did a round up and comparison of these four models.

Lenovo ThinkPad X1 Yoga Gen 1

The Gen 1 came out in 2016 as the X1 Carbon became lighter, thinner and lost it’s touchscreen. There was mixed reaction to this decision from Lenovo, and although the Yoga had existed in several forms previously, this was the first in the ThinkPad X1 series.

Lenovo ThinkPad X1 Yoga Gen 1

Notable on this model is the OneLink+ connector – a shortlived port for a OneLink+ dock that only survived a single generation, to be replaced by USB-C/Thunderbolt. It has the standard rectangle style power plug hole, again this would not be seen on future X1 Yogas.

This is the only model to not have a dedicated Ethernet port, instead a special OneLink+ Ethernet dongle, USB2 100mbit dongle or USB3 gigabit dongle was required.


Lenovo ThinkPad X1 Yoga Gen 2

2017 saw this release with the 7th Gen Intel CPU and the OneLink+ port abandoned, replaced by USB-C. This was great, since it was now an industry standard and meant there was a lot of flexibility with what power pack and dock you could use.

Lenovo ThinkPad X1 Yoga Gen 2

This is the first model to have an OLED display option, and strangely this Gen 2 is slightly thicker and heavier than the Gen 1. There wasn’t that many improvements in this model, but overall it’s pretty well rounded solution.

Battery life on this was claimed to be a lot better than the Gen 1.


Lenovo ThinkPad X1 Yoga Gen 3

It was the third model’s turn in 2018 which saw few changes again. Another generation jump on the Intel CPU, which this time doubled the core count from the 7th to 8th mobile CPU generation.

Lenovo ThinkPad X1 Yoga Gen 3

Other smaller changes included the introduction of a shutter over the camera, a HDR display option with Dolby Vision, and the black colouring a bit different – the chassis is glossier, and anything silver has gone black including the hinges and ThinkPad logo (it still looks silver in this photo sorry!)


Lenovo ThinkPad X1 Yoga Gen 4

And finally, here we are in 2019 with the Gen 4 being released… and it’s a major jump. The biggest jump we’ve seen year to year so far. An all metal chassis, the laptop footprint has been drastically reduced (17% smaller footprint, 11% thinner), the colour is now ‘iron grey’ which I’m personally a fan of, and the screen to bezel distance is much smaller.

Lenovo ThinkPad X1 Yoga Gen 4

There’s also a new connector for a different ethernet dongle, and support for a new style of dock that connects on the left hand side to the combo USB-C/ethernet slot. Of course it’s jumped a CPU generation again, up to Intel’s 8th.

The MicroSD slot has been dropped, probably as part of making the laptop smaller. If you really need that, then look at any of the previous generations.

One other interesting feature is a new privacy screen option called PrivacyGuard that can be toggled on and off, and stops people seeing the screen on an angle. The retractable key feature has gone again – there’s no rubber feet to protect the keys, but they might be minutely sunk in, I couldn’t tell with the naked eye.

The final note on this model is that it has a very similar CPU to the Gen 3, still an 8th Generation Intel CPU but a newer variant – Whiskey Lake rather than Kaby Lake.

Let’s have a look at the 4 generations stacked together, going bottom to top Gen 1, Gen 2, Gen 3 and Gen 4:

Front – X1 Yogas
Back – X1 Yogas
Left Side – X1 Yogas
Right Side – X1 Yogas

You can see that footprint difference in the photos above. The 4th Gen looks completely different to the rest.

Each of my individual reviews lists out the possible specs for each model if you want to dive a bit further into the technical differences;

Lenovo Thinkpad X1 Yoga Gen 1
Lenovo Thinkpad X1 Yoga Gen 2
Lenovo Thinkpad X1 Yoga Gen 3
Lenovo Thinkpad X1 Yoga Gen 4

The X1 Yoga will never be as small and light as the X1 Carbon, and never be as portable as the X1 Tablet, nor the powerhouse of the X1 Extreme – but it is all of these devices at once in it’s own way. It’s still my pick of the X1 series for it’s flexibility, but the other choices could also be better for your personal needs if you know how you’re going to use it.

Lenovo ThinkPad Yoga X1 Gen3 Review

Lenovo’s X1 Yoga for 2018 is now available, and I have my hands on one to review – which I’m using to write this article (Lenovo sometimes provide me with a laptop for review purposes, but that’s not the case for this particular one.)

Initially it looks and feels rather similar to the Gen 2 which I reviewed not that long ago. There are differences, but the jump from Gen 2 > 3 isn’t as big as Gen 1 > 2 was. I’d like to think that’s because they got things pretty right with the Gen2, and there wasn’t as much to change.

First, let’s check out the ‘Tech Specs’ – I’ll bold the options this particular laptop has in the table below.

Processor
  • 8th Gen Intel® Core™ i5-8250U Processor (6M Cache, 1.6 GHz, 3.4 GHz max)
  • 8th Gen Intel Core i5-8350U Processor (6M Cache, 1.7 GHz, 3.6 GHz max), vPro™
  • 8th Gen Intel Core i7-8550U Processor (8M Cache, 1.8 GHz, 4.0 GHz max)
  • 8th Gen Intel Core i7-8650U Processor (8M Cache, 1.9 GHz, 4.2 GHz max), vPro
Operating System
  • Windows 10 Home 64-bit
  • Windows 10 Pro 64-bit – Lenovo recommends Windows 10 Pro.
Display
  • 14″ FHD IPS (1920 x 1080), 270 nits, Touch
  • 14″ WQHD IPS (2560 x 1440), 270 nits, Touch
  • 14″ HDR WQHD IPS with Dolby Vision™ (2560 x 1440), 500 nits, 100% colour gamut, Touch
Graphics
  • Intel UHD Graphics 620
Memory
  • 8GB 2133MHz LPDDR3, memory soldered to system board
  • 16GB (max) / 2133MHz LPDDR3, memory soldered to system board
Webcam
  • Standard: 720p HD camera with ThinkShutter
  • Optional: IR camera – required for Windows Hello and facial recognition, but it does not have ThinkShutter
  • Both with dual array microphone
Storage
  • M.2 SSD / PCIe NVMe OPAL2: 256GB / 512GB / 1TB
Optical drive
  • None
Dimensions (W x D x H)
  • 333 x 229 x 17.05 mm
Weight
  • Starting from 1.4 kg
Case colour
  • Black
  • Silver
Battery
  • 4-cell (57 Wh), integrated
Battery life1
  • Up to 15 hours
AC adaptor
  • 65W 3-pin USB-C, supports RapidCharge
Keyboard
  • ThinkPad backlit rise& fall keyboard
Fingerprint reader
  • Match on Chip (MoC) touch fingerprint reader
Audio support
  • Stereo with Dolby® Audio™ Premium
Ethernet
  • Via native ethernet dongle
Wireless LAN
  • Intel Dual Band Wireless-AC 8265, Wi-Fi 2×2 802.11ac + Bluetooth® 4.2*
Wireless WAN
  • Integrated global mobile broadband LTE-A (optional)
NFC
  • None
Ports
  • 2 x USB 3.0 (1 x AlwaysOn)
  • 2 x Thunderbolt (x4 Gen3)
  • 1 x HDMI
  • 1 x 4-in-1 micro SD card reader (SD, MMC, SDHC, SDXC)
  • 1 x Combo audio/microphone jack
  • 1 x native ethernet

Let’s go through some of the areas of interest:

CPU – Although often there’s little difference between each generation of CPU, there’s actually a big difference this time. If you look at the Intel spec sheet, the core count has doubled from 2 to 4, along with the thread count of 4 to 8. The single core clock speed is lower, down from 2.60Ghz to 1.90Ghz, but the Max Turbo Frequency is the slightly higher at 3.60Ghz rather than the older 3.50Ghz.

What does this all mean? It depends, but overall it’s probably a lot better. Single threaded programs might be a bit slower, but these days if it’s single threaded it’s probably old and anything modern is more than fast enough for it. Multi-threaded programs will go substantially faster. Here’s a benchmark comparison with some figures to demonstrate that. Of course, multitasking with many different programs should be a faster experience too.

Display – I would have loved to have seen that high end display, but the base level one is more than enough still. HDR, Dolby Vision and other high end settings – I need to see this!

RAM – If you want this laptop to last you years, go the 16GB. 8GB is still plenty, but we’re getting closer to 16GB being the standard. For general use, you still probably won’t hit the 8GB limit (unless you have a lot of Chrome tabs open!).

Webcam – I like the new little shutter that’s built in. You see a red dot when it’s closed, and the switch to open it is very small and unobtrusive.

Storage – As always, pick what you think you’ll need. It’s nice and fast!

Weight – Nothing’s changed here, same weight within a few grams as the last few models. It’s not a feather, but it’s light enough.

Case Colour – Yes this one is black, but it’s a bit different. The entire shell is a slightly glossier black than the matte black the last few models have had. The hinges are now black too, which fits in a bit nicer with the black body. There’s also the new X1 logo on the lid and the Lenovo branding on the bottom left of the display – all of which I think looks good. It’s branding without being in your face.

Battery – Same as the last generation, a big 15 hour claim and 12 hours just from an hour charge. I haven’t sat down and tested this, and another review I found claimed a bit under 8 hours which is slightly under the average, but of course it depends on what you do.

Other notes:

The fingerprint reader is a little smaller now, but works the same. Still USB-C charging which is great, but we seem to have lost one of the USB 3 ports on the left hand side. The device supports Microsoft AutoPilot which is good for anyone who wants to set this up on their Azure/Office 365 tenant and send devices out without needing to actually do anything to them.

There’s the new ‘Cortana Premium’ which makes the device pick up voice commands better and from a distance or different angles. The stylus is the same too, which is still a mid-size rapid charging pen that does the job well.

Let’s have a look at all the angles of the X1 Yoga Gen3:

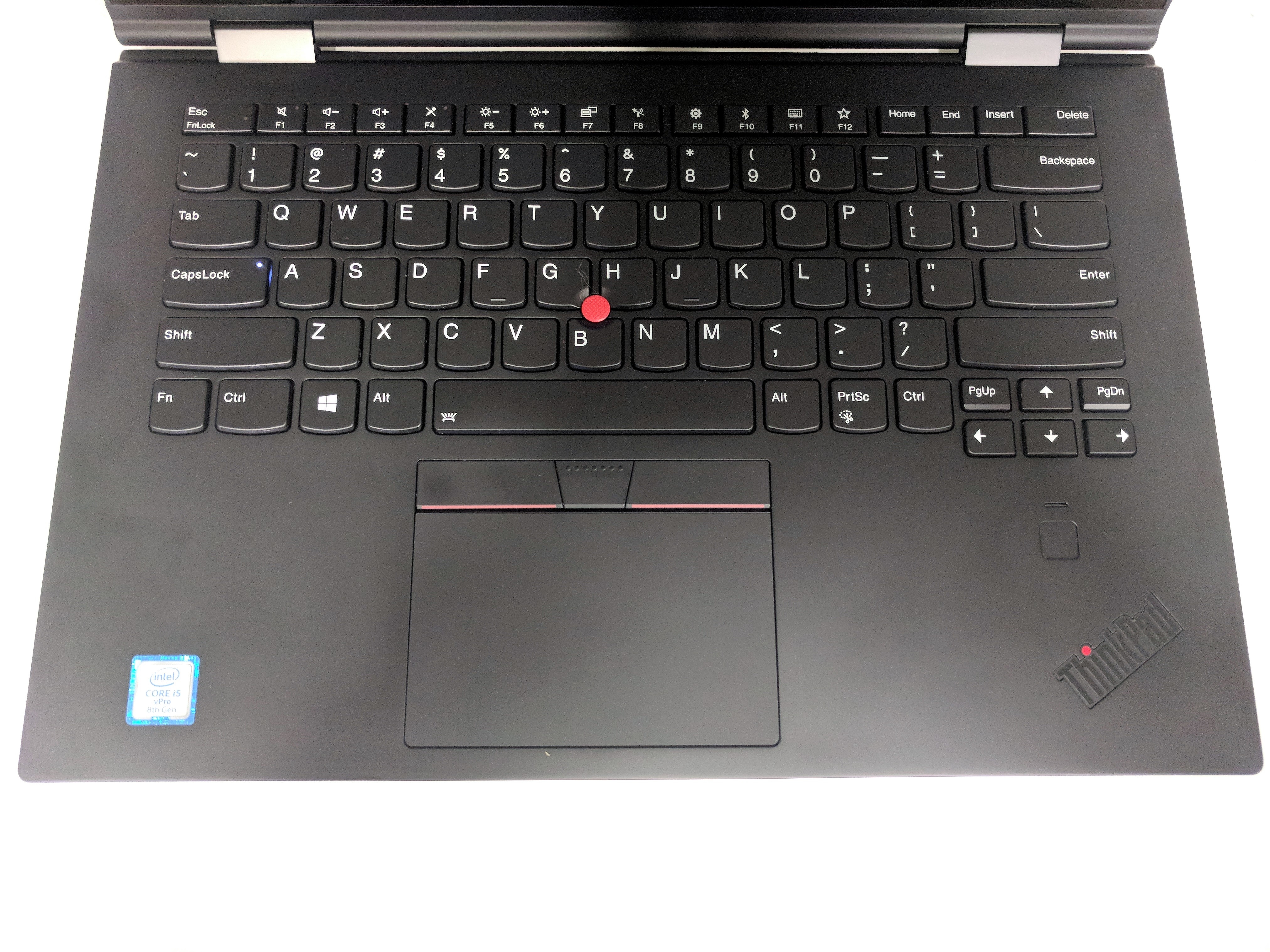

Keyboard and Trackpad

As with most ThinkPads, the keyboard and trackpad are high quality. There’s not any wacky key changes in this model, and it’s very similar to the Gen2.

Lid

It was really hard to get a decent picture of the lid due to the new material they’ve used! We’ve now got the new X1 logo in the bottom right, the black hinges at the bottom and the standard ThinkPad logo in the top left, with the dot on the ‘i’ to indicate power on or off.

Front

Back

Front and Back – nothing exciting here, you can see the hinges again with the fan vent and panel for SIM and SD card.

Base

Again nothing exciting on the base, fingerprints already after I’d wiped it and moved it about which is the price you pay for having a nice black surface. You can see the dual speakers along with the stylus on the bottom left.

Left Side – USB-C In, USB-C Out, USB3 Right Side – Stylus, Power, 3.5mm Audio Jack, Mini Ethernet, USB3, HDMI Out, Kensington Lock

Summary – A small upgrade from the last Lenovo ThinkPad Yoga Gen2, the Gen3’s better 4 core CPU is a reasonable selling point. The slight cosmetic changes are all nice, but there’s nothing too drastic that a Gen2 owner should consider upgrading to. However, it’s a big jump from the Gen1 which you can read my original review on too. I’ll do a seperate writeup comparing the three models soon, and it’s still my pick of the ThinkPad lineup that I can’t fault. I’m actually running a VM on it (Windows 10 VM on Windows 10!) to work from and it performs very well for those wondering if they can do the same. Feel free to ask any questions below!

Also here’s a video review from MobileTechReview:

Lenovo ThinkPad X1 Yoga Gen 2 Review

In 2016, the first Lenovo Thinkpad X1 Yoga (which I reviewed) was released in the ThinkPad lineup. It was my pick of laptops, being a solid all-rounder.

It’s 2017 now, and the second generation of this laptop has been out for a few months now. You can buy it straight from Lenovo or other suppliers… but is it still as good, and what’s changed in this latest generation?

Let’s start with the tech specs:

Processor
  • 7th Gen Intel® Core™ i5-7200U Processor (3M Cache, 2.5GHz, max. 3.1GHz)
  • 7th Gen Intel Core i5-7300U Processor (3M Cache, 2.6GHz, max. 3.5GHz), vPro
  • 7th Gen Intel Core i7-7500U Processor (4M Cache, 2.7GHz, max. 3.5GHz)
  • 7th Gen Intel Core i7-7600U Processor (4M Cache, 2.8GHz, max. 3.9GHz), vPro
Operating System
  • Windows 10 Home 64-bit
  • Windows 10 Pro 64-bit – Lenovo recommends Windows 10 Pro.
Display
  • 14″ FHD (1920×1080), glossy, 270 nits, 700:1 contrast ratio, narrow bezel FHD panel (on models with no WWAN only), IPS
  • 14” WQHD (2560×1440), glossy, 270 nits, 700:1 contrast ratio, IPS
Multi-Touch
  • Capacitive touch panel, supports 10-finger gesture
Hinge / mode
  • Yoga hinge, 360 degree / Laptop, tent, stand and tablet
Pen
  • ThinkPad Pen Pro
Graphics
  • Intel HD Graphics 620 in processor only, supports external digital monitor via HDMI or USB Type-C; supports 3 x independent displays; max. resolution: 4096×2304@60Hz (USB Type-C), 4096×2160@24Hz (HDMI)
Adaptor (optional)
  • HDMI to VGA adaptor
  • USB-C to VGA adaptor
  • USB-C to DisplayPort adaptor
Memory
  • 8GB / 16GB, LPDDR3 1866MHz, soldered to systemboard
Webcam
  • HD 720p resolution, fixed focus
  • IR camera and HD 720p camera (option is available on models with narrow bezel FHD panel only)
Storage
  • M.2 SSD / SATA 6.0Gb/s: 128GB
  • M.2 SSD / PCIe NVMe: 256GB OPAL2 / 512GB OPAL2 / 1TB OPAL2
Optical drive
  • None
Dimensions (W x D x H)
  • FHD/WQHD: 333 x 229 x 17.05 mm
Weight
  • FHD/WQHD: 1.42 kg
Case colour
  • Black
  • Silver
Case material
  • Carbon-Fibre Hybrid
Battery
  • 4-cell integrated battery (56Wh)
Battery life
  • FHD: up to 15 hours
  • WQHD: up to 14 hours
AC adaptor
  • 45W Type-C
  • 65W USB Type-C (support Rapid Charge)
Keyboard
  • 6-row, multimedia Fn keys, spill-resistant, wave keyboard, backlit
UltraNav
  • TrackPoint® pointing device and multi-touch with 3+2 buttons click pad
Fingerprint reader
  • Touch style fingerprint reader on keyboard bezel
Audio support
  • HD Audio, Dolby® Audio Premium / stereo speakers, 2W x 2 / dual array microphone, combo audio/microphone jack
Ethernet
  • Gigabit Ethernet via Ethernet (RJ-45) adaptor
Wireless LAN
  • Intel Dual Band Wireless-AC 8265, 2×2, Wi-Fi + Bluetooth® 4.1, M.2 Card
  • Intel Tri-Band Wireless-AC 18265, 2×2, WiGig™ + Wi-Fi + Bluetooth® 4.1, M.2 Card (available only on models configured with vPro processor)
Wireless WAN
  • Sierra EM 7430 (optional)
SIM card slot
  • Micro-SIM card slot (models with 4G card only)
NFC
  • None
Ports
  • 2 x Intel Thunderbolt 3
  • 3 x USB 3.0 (1 x AlwaysOn)
  • HDMI
  • microSD
  • microSIM (models with 4G card only)

Processor wise, we’ve jumped a generation too, now on the 7th Gen Intel series of CPUs. Pretty standard there. The 8th Gen has already started releasing Q4 2017, but that’s early days with both series being released in the same year, and companies like Lenovo need time to incorporate these into their products.

The display options are good too, the two resolutions I’m happy to pick from. OLED is supposed to be available, but I have personally not seen one in real life, nor can I find any information in Lenovo’s tech specs on it, so you’ll have to read some other reviews to get a take on that. From everything I’ve read though, it’s highly praised. Hopefully I’ll get to see one soon!

Touchscreen, 360 degree hinges and the stylus are standard again, which makes this device particularly versatile. It’s still my preferred style of hybrid laptop/tablet as no functionality is lost in laptop mode, and you don’t need to undock/dock and worry about where half the device gets stored.

Graphics is still on board, which these days is more than enough unless you’re doing high end graphic design or gaming. Having a full HDMI port is nice too, instead of finding adapters or the right cable when outputting video – full size HDMI is today’s standard.

RAM wise, 8GB and 16GB options are all you need, again unless you’re doing some real high end work, or trying to run several virtual machines at once. Storage is the same as last year, no complaints there.

The size of the newer Yoga is identical to last year’s, apart from this new one being thicker. THICKER? Yep, a little, 0.25mm. It’s also heavier by 6 grams. I don’t think you’re going to notice either of these changes though, here’s then Gen 1 and Gen 2 stacked together:

X1 Yoga Gen 2 on top of a X1 Yoga Gen 1

You might be wondering why the newer one is slightly thicker and heavier, and I believe this is because of the keyboard.

It’s called a ‘Wave Keyboard’ and it rises and falls with the opening and closing of the screen. The idea of this is to protect the keys from damage when in tablet mode:

I like it, and the keyboard itself still feels normal despite having this extra ability.

Battery life has been improved again, and quite drastically – a claim of 4-5 hours more than the previous generation. Quite impressive!

Here’s a full photo of the keyboard:

After using this for a while, I have no faults to pick. Caps Lock is where it should be, as well as page navigation buttons (such as home and page up). The keys are nice to use, trackpad is a great size and has the physical mouse buttons if you prefer. There’s also a fingerprint reader that works great with Windows 10 Hello for almost instant logins.

If you’re trying to identify a X1 Yoga Gen1 vs a X1 Yoga Gen2 (beyond checking the side for USB-C!) it’s easy to see via the keyboard. For one, the PrtSc (print screen) button is different:

X1 Yoga Gen 1 PrtSc

X1 Yoga Gen 2 PrtSc

Or, you can look at the F12 button, the newer Yoga has a star:

X1 Yoga Gen 1 F12

X1 Yoga Gen 2 F12

Let’s have a look at the sides of the laptop:

Left Side: USB-C in, USB-C out, USB 3, USB 3 with power out (can charge a phone without powering on laptop)

Right Side: Stylus, Power, 3.5mm Headphone Jack, Ethernet adapter port, USB 3, Full Size HDMI

Back – Hinges, Protected Slot for SD and SIM

As you may have noticed, the old rectangle power cable port has gone, replaced by USB-C. This is the new industry standard, and it’s good to see Lenovo be a part of that. USB-C charges quickly, and if you have a phone with the same port, can be used to charge that too. The rapid charge claims to get to 80% charge in 60 minutes which I’m very happy with, and experienced similar charge times in real life.

Also there’s no full size network port – the laptop would have to be thicker because of this, so I can live with a dongle on that. Most of the time the laptop is being used portable on Wifi, or at a workstation and using a dock, so this isn’t a dealbreaker.

Speaking of docks, that’s what the USB-C out port is for. My experience so far with those docks has been much better than the older USB 3 models which seemed to lock up occasionally, and there’s the added bonus of running power and data over 1 cable!

I haven’t picked on this year’s X1 Yoga because there’s really that little to pick at. The 7th Gen CPU only supports Windows 10, so you can’t use Windows 8.1 or 7, but that’s an Intel CPU/Microsoft limitation across all laptops and desktops now. Beyond that, I really like this laptop – even more than last year’s. At my work, this is our standard laptop purchase now, which is why I’ve been able to review it, tied into a Windows 10 rollout (It wasn’t given to me by Lenovo).

I can honestly say that I believe this is the right time to upgrade if you’re thinking about it. This laptop will last many years, incorporates all the new features and connections that I think are worth considering, and doesn’t leave anything behind. You won’t be disappointed with this laptop!

Here’s a video review of the laptop from MobileTechReview:

Lenovo X1 Tablet Review

A few months back, I reviewed the Lenovo X1 Yoga which was my pick of the latest X1 series of laptops (and still is). That doesn’t discount the other Lenovo offerings though, as they may be better suited to other people’s requirements more than mine.

One of those options worth looking at is the Lenovo X1 Tablet. At the time of writing, the Australian store is completely sold out of them, so they must be doing well :) Somehow I was still lucky enough to be sent one from Lenovo, and I’m glad they did.

20160926_171954Lenovo X1 Tablet Side On

The X1 Tablet is Lenovo’s take on the Microsoft Surface. A lot of ideas are borrowed, and then improvements on top. Let’s look at the specs first, then the form factor.

CPU

This has a Core m CPU – the 3 options are:

Intel Core m3-6Y30 Processor ( 900MHz 1866MHz 4MB)
Intel Core m5-6Y54 Processor ( 1.10GHz 1866MHz 4MB)
Intel Core m7-6Y75 Processor ( 1.20GHz 1866MHz 4MB)

The new mobile fanless CPUs are a lot better than they were a few years ago. Even the Apple Macbook uses them, and those CPU speeds are a base speed, not the turbo speed they’re capable of pushing to. Which one should you pick? Tough choice as the cost differences aren’t small, but apply the same logic you would as the ‘i series’ between i3, i5 and i7. Apart from a fanless design, you get a lot more bang for your buck battery wise.

Display and Screen

Just the one option here:

12.0″FHD+ IPS LED 2160×1440

20160928_15432812″ Screen

It’s a very high res which will more than meet your requirements for a 12 inch screen.The screen only comes in touch enabled, but you also get a nice pen to use. It’s similar to the Surface 3/4 pen, uses a AAA battery that can be replaced, and is nicer than the smaller pen that comes with the X1 Yoga:

20160927_085552-customBack: X1 Tablet Pen. Front: X1 Yoga Pen.

The Yoga X1 pen is smaller so it can discreetly fit into the laptop, while the X1 Tablet pen sits in an optional loop on the side of the laptop:

20160926_171934-custom

If you don’t like the loop, you don’t have to use it as it’s interchangable with a blank plate in the keyboard, which is a nice touch.

Memory and Hard Drives

The memory options are:

  • 4.0GB LPDDR3-1866 LPDDR3 1866MHz
  • 8.0GB LPDDR3-1866 LPDDR3 1866MHz
  • 16.0GB LPDDR3-1866 LPDDR3 1866MHz

If you’re doing anything beyond basic web browsing and Word/Excel type work, or like to have a lot of things open go the 8gb. 16gb should only be needed if you’re doing high end work.

Same with the hard drives. The default options are:

  • 128GB SSD SATA III
  • 256GB SSD SATA III

You can go all the way up to 1TB too.

If you don’t need a lot of local storage, you might be fine with the 128GB. You can always use an external hard drive or USB stick (USB 3.0 is very fast for read/write), but if you want to keep a lot locally on the device, go the 256GB.

Size and Weight

The tablet part by itself is 767g which is a lot lighter than any ‘i series’ laptop. The keyboard brings it up to 1.07kg which is still incredibly light. In comparison, the very light and thin X1 Carbon 4th Gen weighs in at 1.21kg.

Being a 12″ hybrid laptop the dimensions are quite small:

  • Tablet :
  • (mm) : 291.5 x 209.5 x 8.45
  • (inches) : 11.47″ x 8.25″ x 0.33″
  • Tablet + Keyboard
  • (mm) : 291.5 x 209.5 x 13
  • (inches) : 11.47″ x 8.25″ x 0.51″

20160929_094234-customX1 Tablet on a X1 Carbon Gen 1 on a ThinkPad P50

Battery

You’ll get a 2 cell Li-Polymer battery, which gives 10 hours of battery in tablet mode, and 5 hours in ‘productivity’ mode, which means the keyboard is attached. If that’s not enough battery life for you, then you’d better have a look at the Productivity Module!

Productivity Module  – 5 Hours Battery Life, HDMI™, OneLink+ and Full-size USB

Presenter Module – A Pico Projector Capable of 60″ Display from 2 Meters, Full-size HDMI™ (in/out)

Sadly these aren’t available in Australia (yet or at all?) but they both sound very cool. The productivity module adds another 5 hours of battery and a few extra connectors (including a OneLink+ dock connector which isn’t available otherwise). The projector also looks great, check out this clip from The Verge showing off the modules (I believe the 3D RealSense Camera has been abandoned):

Other Bits and Pieces

There is an optional sim slot for those people who want to be mobile and have internet access, which is discreetly hidden behind the stand. The keyboard is one of the standout parts of the X1 Tablet, where it’s as close as possible to the nice ThinkPad keyboard experience while being a thin and light addition. The keyboard attaches via magnets and pins, again similar to the Microsoft Surface. There’s also a fingerprint reader which can be used for Windows Hello, and an inbuilt camera/microphone.

20160926_172009-customBack of the X1 Tablet

20160926_172039-customSide on

20160926_172204-customX1 Tablet display on top of the ThinkPad P50

20160929_094151-custom-customX1 Tablet Keyboard

Thoughts

I was first put off by the ‘m series’ CPU, but after using it and doing a bit of research, it’s a LOT better than I expected. It didn’t feel like I was using a slower chip at all. The form factor is quite nice, 12″ is a good portable size and the kickstand is very sturdy and secure, and lets you adjust smoothly to whichever angle you like (it doesn’t click in certain angles only). The keyboard has a design that lets you raise it from being flat which gets even closer to a chunky keyboard feel, and is even backlit. The Trackpad is of high quality as per usual in the ThinkPad series.

This is a really good ‘take into meetings’ device for note taking, and if you had the projector module it could add a lot of value for small presentations. It is powerful and useful enough to be your device that does ‘all the things’ too without feeling like you’re using a tablet with a keyboard addon (looking at you, iPad). A lot of people like the 12″ screen form factor with the tablet hybrid mode, and this is the best style of it I’ve seen so far (I was never a fan of the old Thinkpad Helix).

If you don’t need as much CPU grunt, and want a highly portable device that covers a lot of different situations, I’d definitely recommend this laptop/tablet/hybrid.

Lenovo ThinkPad X1 Yoga Gen1 Review

Lenovo has recently released the 2016 lineup of ThinkPad X series laptops. Previously this was only the X1 Carbon, which was a highly regarded laptop. I have a feeling that success has lead to extending the range for 2016 to:

Lenovo X1 Carbon (Gen4)
Lenovo X1 Tablet
Lenovo X260
Lenovo X1 Yoga

A wide variety of laptops to meet different needs. My pick of the crop is the Lenovo X1 Yoga, and here’s why:

output_1aJEi4Lenovo ThinkPad X1 Yoga

Specs
I always like to look at the hardware specs of the device first, so here’s the table of options:

DESCRIPTION THINKPAD X1 YOGA CONVERTIBLE ULTRABOOK
Processor
  • Intel® Core™ i5-6200U Processor (3M Cache, 2.3GHz), Turbo Boost 2.0 (2.8GHz)
  • Intel Core i5-6300U Processor (3M Cache, 2.4GHz), Turbo Boost 2.0 (3.0GHz)
  • Intel Core i7-6500U Processor (4M Cache, 2.5GHz), Turbo Boost 2.0 (3.1GHz)
  • Intel Core i7-6600U Processor (4M Cache, 2.6GHz), Turbo Boost 2.0 (3.4GHz)
Operating system
  • Windows 10 Home 64-bit
  • Windows 10 Pro 64-bit
  • Windows 7 Professional 64-bit preinstalled through downgrade rights in Windows 10 Pro 64-bit
Display
  • 14″ FHD (1920×1080), 300 nits, 16:9 aspect ratio, IPS, 10-point Multi-Touch
  • 14” WQHD (2560×1440), 300 nits, 16:9 aspect ratio, IPS, 10-point Multi-Touch
Hinge / mode
  • Yoga hinge, 360 degree / Laptop, tent, stand and tablet
Stylus Pen
  • ThinkPad Pen Pro, active pen for multi-touch display, docks inside laptop and auto recharges.
Graphics
  • Intel HD Graphics 520 in processor only, supports external digital monitor via HDMI, Mini DisplayPort; supports dual independent display Max resolution: 3840×2160 (Mini DisplayPort)@60Hz 4096×2160 (HDMI)@24Hz
Onelink+ Adaptor (optional)
  • HDMI to VGA Adaptor
  • Mini DisplayPort to VGA Adaptor
Memory
  • Up to 8GB / up to 16GB for i7-6600U model, LPDDR3 1866MHz, non-parity, 1 x 204-pin SO-DIMM socket, max 16GB
Webcam
  • HD720p resolution, fixed focus
Storage1
  • 128GB / 192GB / 512GB SSD, SATA3
  • 256GB SSD, SATA3 Opal 2.0 Capable
  • 512GB SSD PCIe NVMe
Optical drive
  • None
Dimensions (W x D x H)
  • 333 x 229 x 16.8 mm
Weight
  • Starting at 1.36 kg
Case material
  • Display cover: Carbon-Fibre Reinforced Plastic + Glass-Fibre Reinforced Plastic; Bottom: Magnesium/Aluminum
Case colour
  • Midnight Black
Battery
  • 4-cell Li-Polymer battery (52Wh)
Battery life2
  • Up to 11 hours3
AC adaptor
  • 65W AC adapter
Keyboard
  • 6-row, LED backlit, spill-resistant, multimedia Fn keys
UltraNav™
  • TrackPoint® pointing device and multi-touch with 3+2 buttons click pad
ThinkLight ™
  • None
Fingerprint reader
  • Integrated touch style fingerprint reader
Audio support
  • HD Audio, Realtek® ALC3232 codec / stereo speakers, 1 watt x 2 / dual array microphone, combo audio/microphone jack
Security chip
  • Trusted Platform Module (Software TPM & Hardware dTPM enabled)
Manageability
  • Intel vPro technology
Ethernet
  • None
Wireless LAN
  • Intel Dual Band Wireless-AC 8260, 2×2, Wi-Fi + Bluetooth® 4.1, no vPro
Wireless WAN (optional)
  • Huawei ME906S (4G LTE/WCDMA/HSPA/GSM/GPRS/EDGE/GNSS), M.2 Card
SIM card
  • None
NFC
  • None
Ports
  • 3 x USB 3.0 (1 x Always On)
  • Mini DisplayPort™
  • HDMI
  • Onelink+ connector
  • MicroSD, supports UHS-I SD card
  • Combo audio/microphone jack
  • Security keyhole
  • Optional Card Reader

This is all pretty standard with good options these days, nothing underpowered or missing in my opinion. Here’s some interesting points:

Stylus Pen

This is a very nice to have, a discreet stylus hidden in the chassis of the Yoga X1. It’s a bit larger than the one I found in the Yoga 260, but still much smaller than a Surface Pro 4 pen. It also charges while docked, and won’t go flat in a year like the Surface Pen :) For more details on the pen, check out this YouTube review

penX1 Yoga Pen

Battery
We’re really getting into good devices with a working day’s battery life. This device was left on a desk for two weeks with frequent but short usage, but always in at least standby mode and still had half it’s battery left. Nothing unique to this particular laptop, but it’s a compelling consideration to upgrade if you’ve got something that hasn’t got an Intel 6th Gen CPU in it.

Storage
We’re now seeing more devices having hte PCIe NVMe SSD option – a lot faster than SATA3. For an idea on the difference, read this review. For most people you won’t ‘need’ a faster SSD, but if you’re doing work with lots of local IO, it’s going to be a worthwhile upgrade.

Weight
1.36kg – that’s 0.05kg heavier than the X1 Carbon Gen3, but  0.18kg heavier than the 1.18 kg X1 Carbon Gen4. Keep in mind, the X1 Carbon Gen4 doesn’t have touchscreen, and as a comparison the Apple MacBook Air 2015 13″ weighs 1.35 kg, so these are all really light laptops. Lenovo have managed to design enough toughness into the hinges for the full flipped Yoga experience, which previously was really clunky.

It’s a lot less chunky too than older X1 Carbons, here’s a comparison with the X1 Carbon Gen1 where there’s quite a bit of height difference (the Carbon is designed to appear thinner, but is perfectly flat on the table):

20160404_165953Left to right: X1 Yoga, X1 Carbon Gen1

Ports
On the left side, we have power, OneLink+ dock connection (which will only take a OneLink+ dock connector, not the older OneLink), Mini DisplayPort and USB 3.0:

20160404_165814X1 Yoga Left Side

Right side has stylus pen, power, volume up/down, 3.5mm audio jack, 2x USB 3.0 and full size HDMI:

20160404_165847X1 Yoga Right Side

The back has the fan out slot, and a panel that hides a MicroSD and SIM card slot:

20160404_165910X1 Yoga Back

Keyboard
It’s very similar to the X1 Carbon keyboards in layout and feel, but also the keys will retract when folded into Yoga mode to protect them against wear. You can see the little rubber mounts pop out in the top corners too, which will touch the table when this is face down:

20160404_172241Keyboard in Yoga Mode

20160404_165612Laptop Mode

Hardware aside, why do I think this is the best in the X series now? This is around my personal tastes, but everyone has their own requirements. Here’s the standout reasons for me:

X1 Yoga vs X1 Carbon 4th Gen – Carbon is lighter and thinner, but doesn’t fully flip around. There’s also no touchscreen option anymore!

X1 Yoga vs X1 Tablet – Tablet has some awesome additions like a projector, but personally I don’t like the more flimsy style of keyboard (similar to Surface 4, but a bit better). Tablet mode is cool, but the X1 Yoga flipping around is light and thin enough already without taking away the proper laptop experience. Just wish I could have a projector in it! On top of that, the tablet is using the m7 series of Intel CPU which isn’t going to be as powerful as the i series.

X1 Yoga vs X260 – Has 25 hours battery life!! But, Smaller 12.5″ again with no touchscreen, or ability to Yoga. Weighs the same despite this. It is hard to get past the 25 hour battery life, but only needed if you’re not near a power point for a very long time.

The X1 Yoga will also soon have an OLED option for the screen – that should be a big jump in screen quality. As I haven’t seen this yet I’ll refrain from making further statements around it, but expect to be impressed.

For a high end laptop, the X1 Yoga is an all rounder that I’d strongly recommend anyone to consider. It’s definitely one of the best all rounder business grade machine available.

If you have any questions or comments please post below!



If you want some more information and visuals, MobileTechReview have a video on the Yoga too:
